All-rounder switching valves for a wide range of applications
The NV valve series is a proven solution for hydraulic systems that has been used millions of times over the years. The valves make it possible to control, change or block the direction of hydraulic fluids or oil in various applications, such as industrial and mobile hydraulics, medical technology, mechanical engineering and the automotive industry.
The NV solenoid directional control valve series
2/2-way or 3/2-way solenoid valve with electrical control
The robust switching valves are 2/2-way or 3/2-way valves with an on/off function and are ideal for use at high pressures of up to 200 bar and flow rates of up to 1.5 l/min. The valves can be operated voltage-controlled with 12V or 24V or current-controlled. Normally closed (NC) and normally open (NO) versions are available and electrical contact is made via plugs with protection class IP40 or IP6K9. The mounting bracket with corrosion protection to automotive standard enables use in splash water areas.
These valves control the direction of the oil flow between two independent hydraulic lines and ensure that different flow paths for the fluid medium are opened or closed. The valve is a hydraulic component for shutting off or releasing the flow.

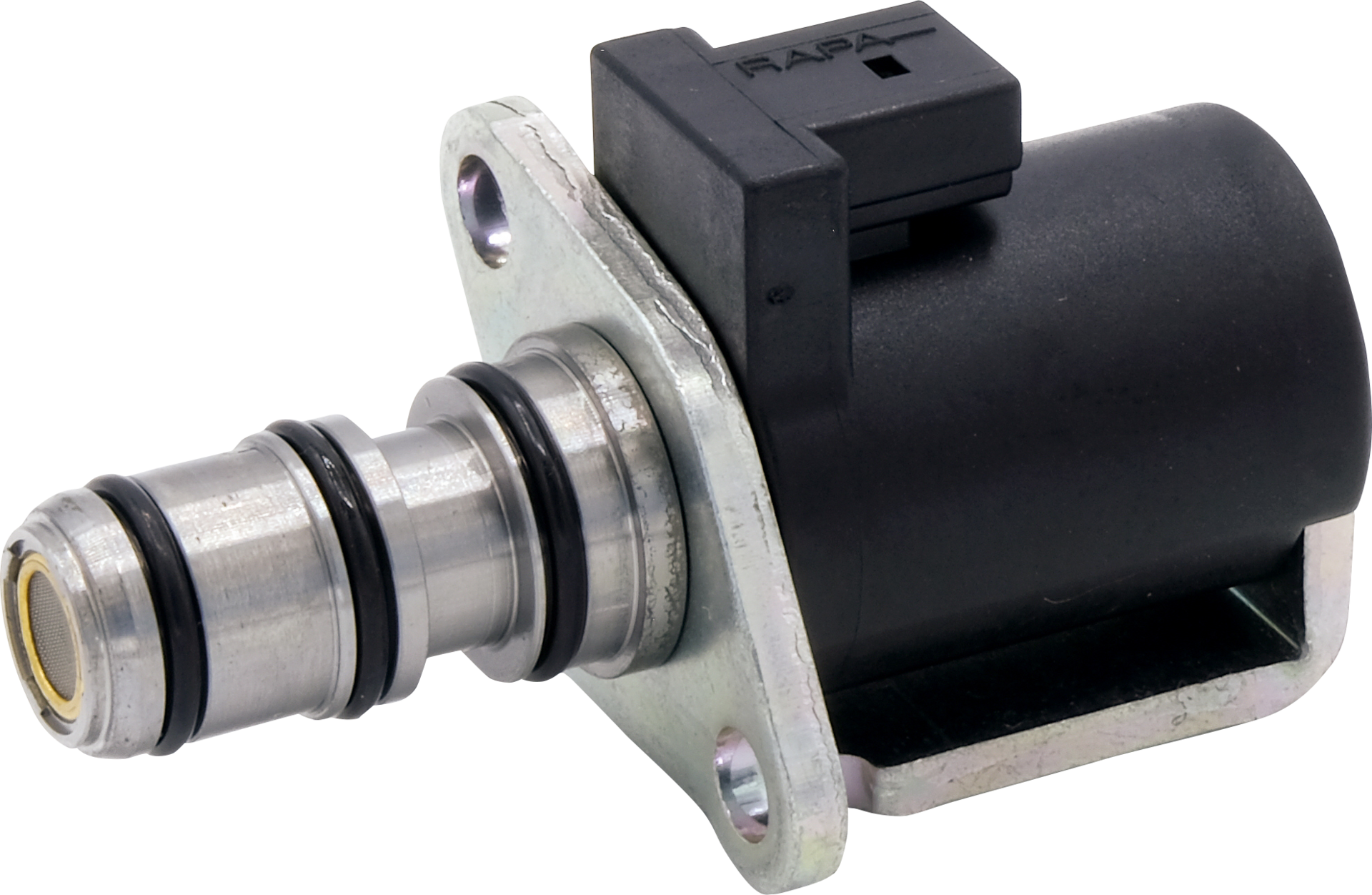

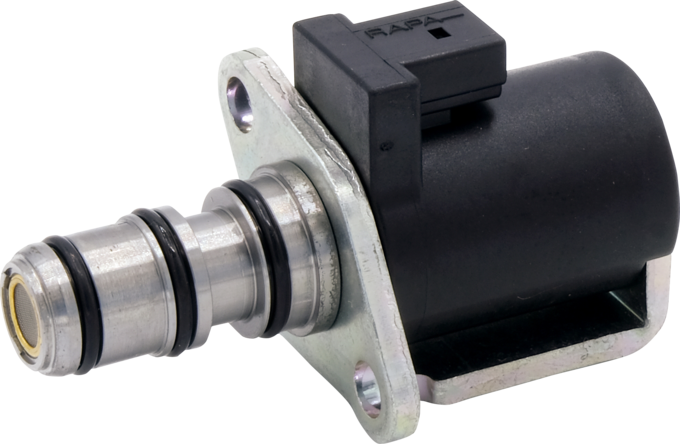

NV series switching valves
The robust 12 V / 24 V switching valves are 2/2-way or 3/2-way valves with an on/off function and are ideal for use at high pressures of up to 200 bar and flow rates of up to 1.5 l/min.
- Compact design
- > 1 million switching cycles
- Equipped with protective strainer as standard

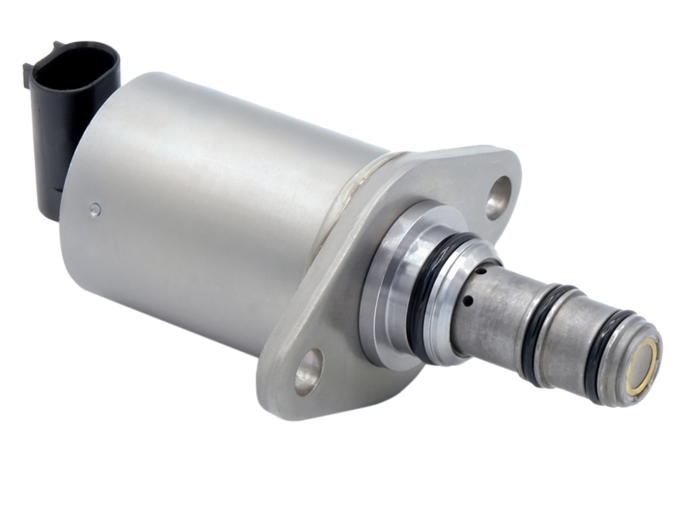

NV series proportional valve
The current-controlled 2/2-way or 3/2-way proportional valves are ideal for use at high pressures of up to 200 bar and a temperature range of -40 °C to +90 °C.
- Throttle valve in compact design
- > 1 million switching cycles
- Equipped with protective strainer as standard
Hydraulic accessories

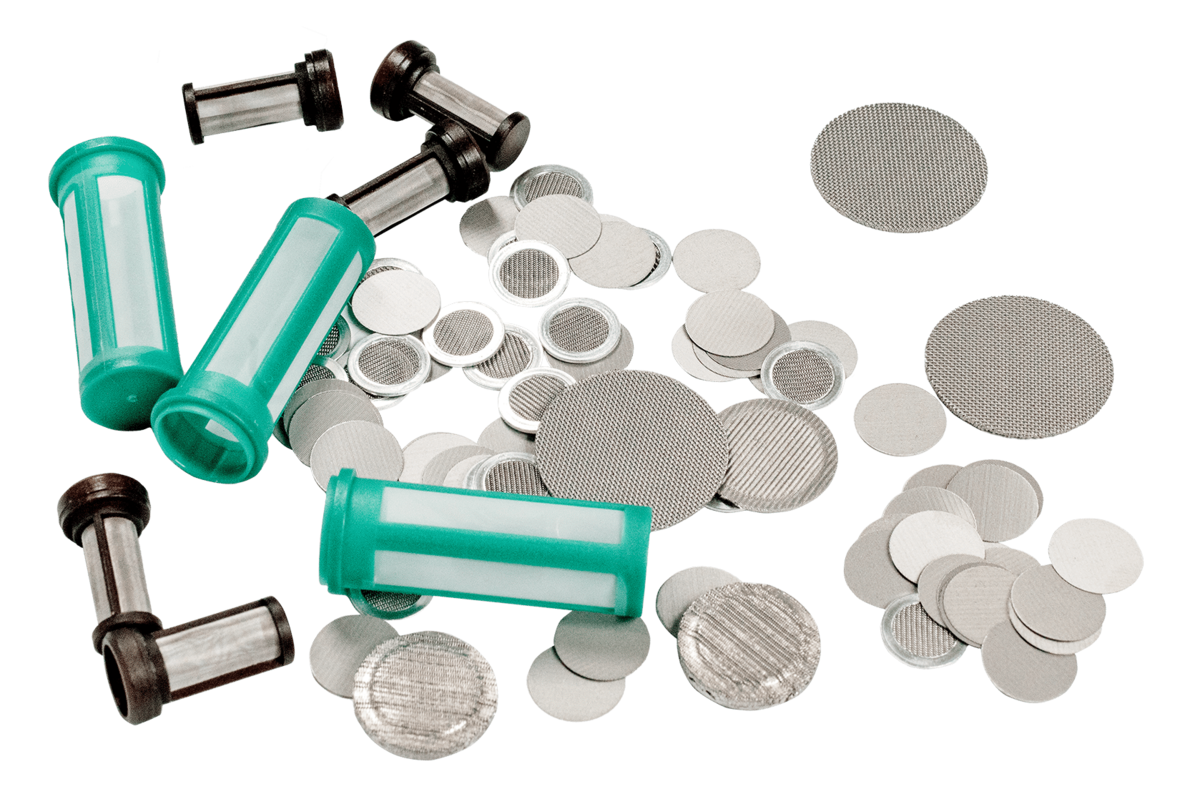

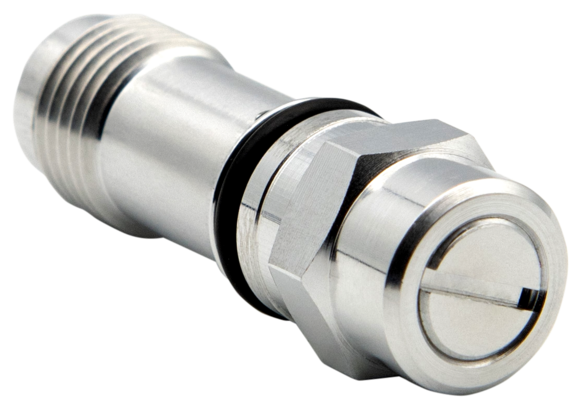

RAPA Healthcare manufactures reliable hydraulic components and accessories, including pressure relief valves (PRV) and non-return valves. Our products can also be manufactured with strainer inserts on request. With precise manufacturing and high quality, we ensure that our valves meet the requirements of hydraulic systems.
Wide range of configurations for individual requirements

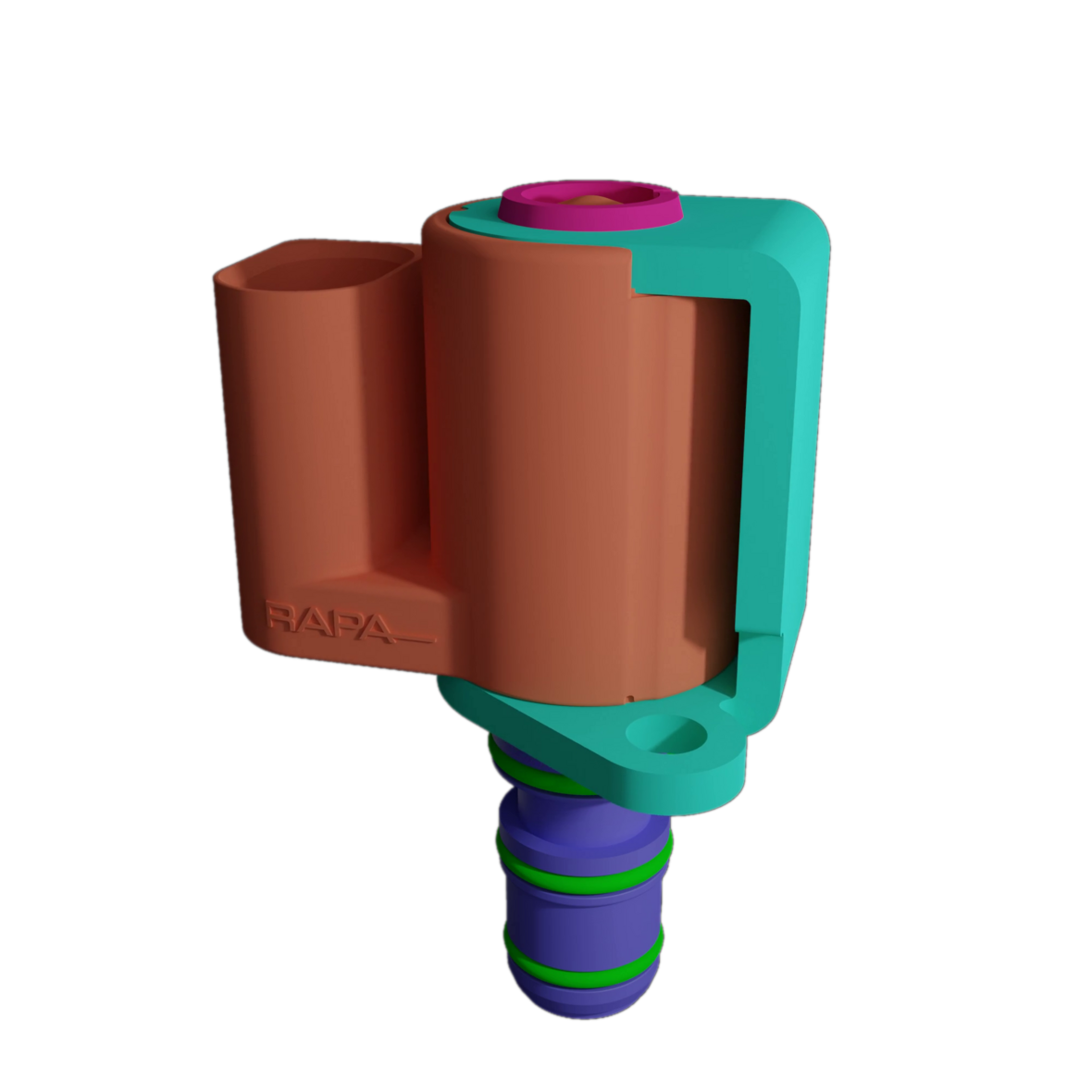

The directional control valve series is based on a flexible modular system that enables the quick and easy implementation of different connection configurations, different voltages and functions. Thanks to the ball-seat valve design, they guarantee maximum tightness, a long service life and above-average robustness. A non-return or pressure maintenance function is also available.
Compared to standard industrial valves, our valves are extremely compact and offer extremely competitive prices due to the high degree of automation. The cartridge-style valve is designed for installation in blocks, which RAPA can also produce directly to customer specifications. Production takes place on highly automated systems and only final-tested parts leave the factory thanks to 100% EOL in-house testing. The NV valve series is therefore a reliable, robust and flexible solution for hydraulic systems that meets the highest requirements.
